Button Chock - 10" Cast Steel
Call for Pricing 812-282-4636
We offers a wide range of Button Chocks for any deck application. Our Button Chocks range from a minimum throat diameter of 6” up to a throat diameter of 10”. All of UMC’s Chocks are made from ASTM A27 cast steel and are built to withstand the toughest conditions.
Feature Description
Button Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Button Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Button Chocks are designed primarily to hold or secure the eye of a line or wire when making up a tow.
Button Chocks are designed primarily to hold or secure the eye of a line or wire when making up a tow.
Material
ASTM A27-70-36 Cast Steel
ASTM A27-70-36 Cast Steel

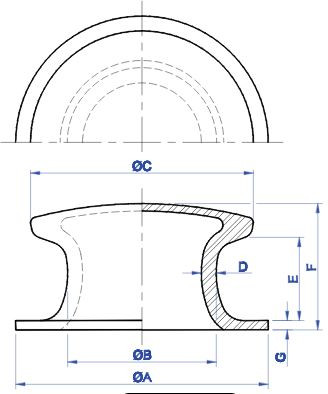

| MODEL NO. | PART NO. | SIZE | ØA | ØB | ØC | D | E | F | G | WT. (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|
| DF-185 | 14567 | 10" | 17" | 10" | 15" | 1" | 5 3/4" | 8 1/2" | 5/8" | 145 |
Current Stock:
SKU:
DF-185
