$248.00

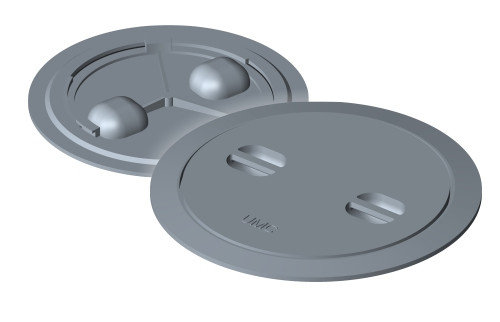

The Twist Lock Hatch is a simple proven design for hatch enclosures. The twist engagement method for securing this hatch makes the Twist Lock hatch the simplest to operate. This hatch is made from high strength 3/8” cast steel with reinforced ribs. Built-in lift-out handles are molded into the cover plate for convenience. The hatch is available in one size, 18” and can be ordered flush or raised with a 5” coaming.

Features
    • Gasket – Nitrile Rubber
    • Chain – Galvanized Steel
    • Coaming (Optional) – Steel
Description
The Twist Lock hatch is a simple proven design for hatch enclosures. The twist engagement method for securing this hatch makes this the simplest hatch to operate. This hatch is made from high strength cast steel with reinforced ribs. Built-in lift-out handles are molded into the cover plate for convenience. It is available Flush or with a Raised Coaming.
Feature Description
High strength cast steel construction.
Lift-out grab handles cast into cover.
Reinforced steel ribs on cover to provide greater impact resistance.
Galvanized keeper chain ensures the cover stays attached and will never get lost.
Application
Twist lock hatches are typically found along the gunnels of a barge as well as on the bow/ stern and on top of cargo compartments or tanks. They are used to access wing tanks, the rake compartment, cargo compartments etc. for venting, filling, and inspecting.

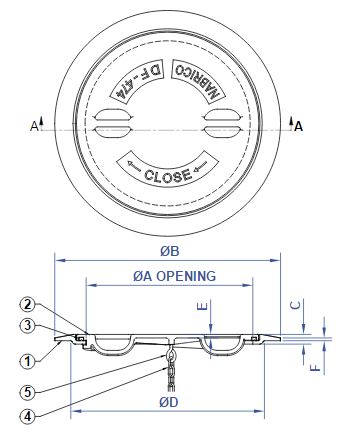

MODEL NO.PART NO.ØAØBCØDEFWT. (LBS)
DF-474 82317 18 3/4" 24 3/4" 1 1/16" 21 1/4" 3/8" 5/16" 80
Current Stock:
SKU: DF-474
