Kevel Chocks are sold as-cast with no surface paint or finish to maintain quick, easy and safe weld-ability to the deck of any barge or workboat.
Application
Kevel Chocks are designed primarily to be used with line or wire for barge coupling, checking, or mooring. They are typically placed along the gunnels of a barge or work-boat.
Material
ASTM A27-70-36 Cast Steel

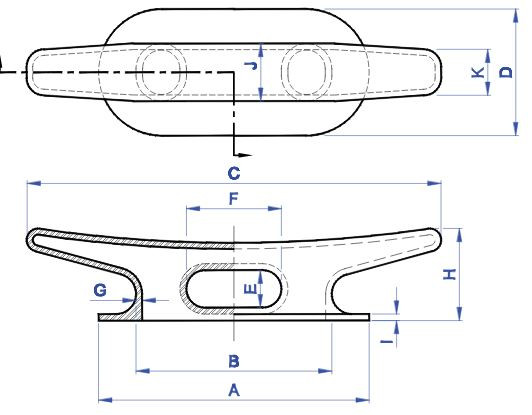

MODEL NO.PART NO.SIZEABCDEFGHIJKWT. (LBS)
DF-30 18562 24" 10 1/2" 9" 24" 7 1/2" 2 1/4" 3 1/4" 1/2" 5 5/8" 1/2" 4" 3" 50
DF-482 20265 36" 23 1/2" 17" 36" 11" 3 1/4" 8 1/4" 9/16" 8" 9/16" 5" 4" 104
DF-483 20273 42" 26 3/4" 20" 42" 12 1/2" 4 1/8" 9 5/8" 5/8" 9" 5/8" 6" 4 3/4" 160
DF-484 20257 48" 30" 23" 48" 14" 5" 11" 3/4" 10" 3/4" 7" 5 1/2" 220
